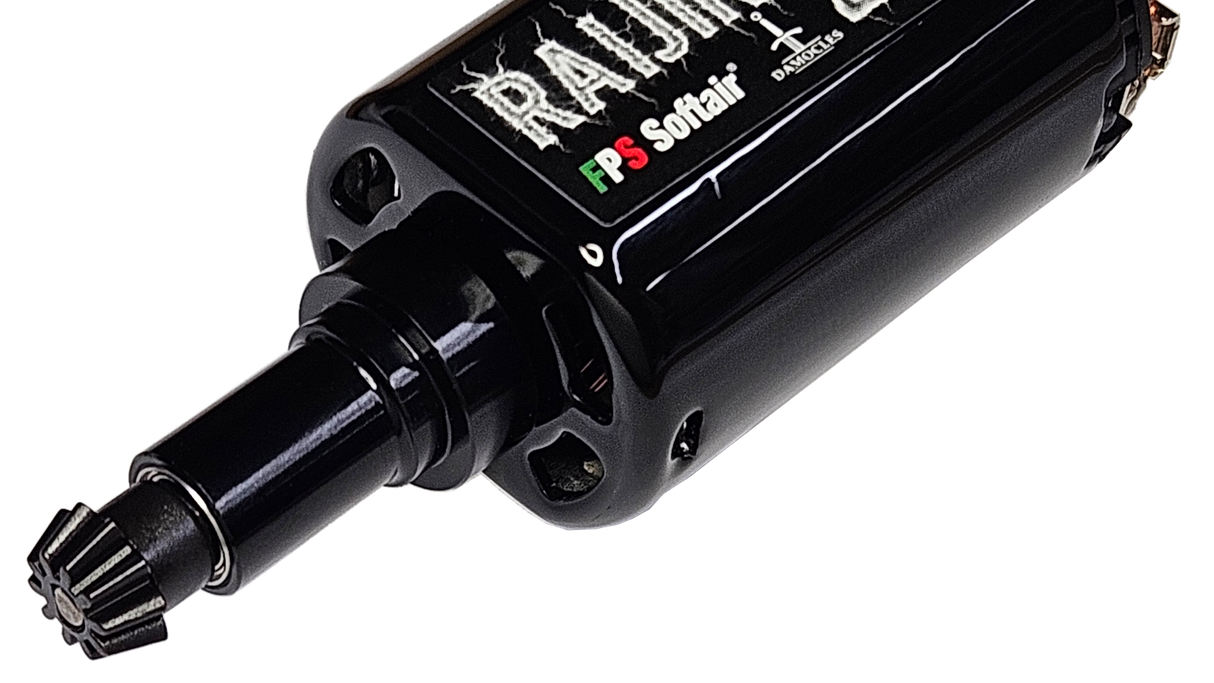

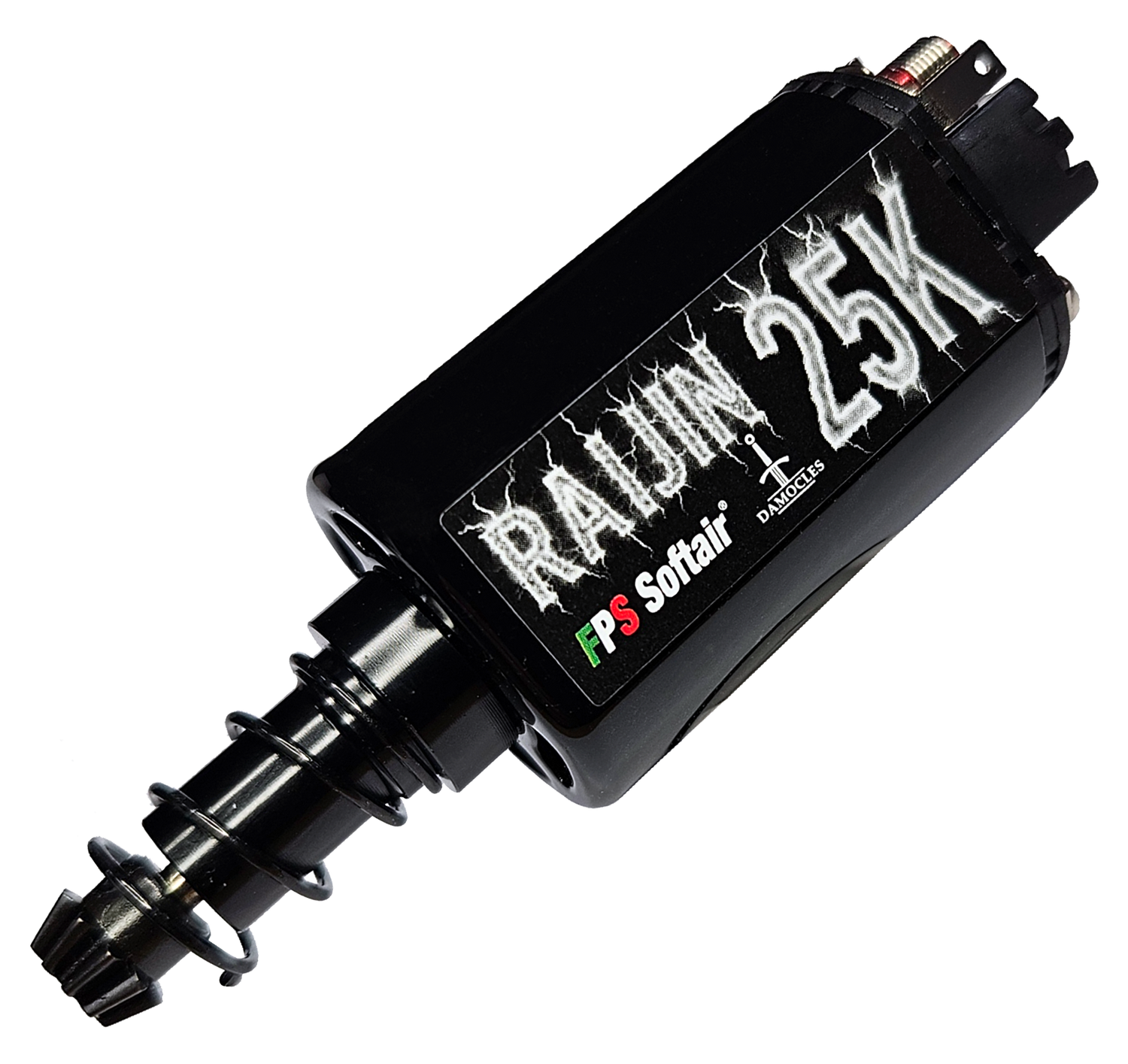

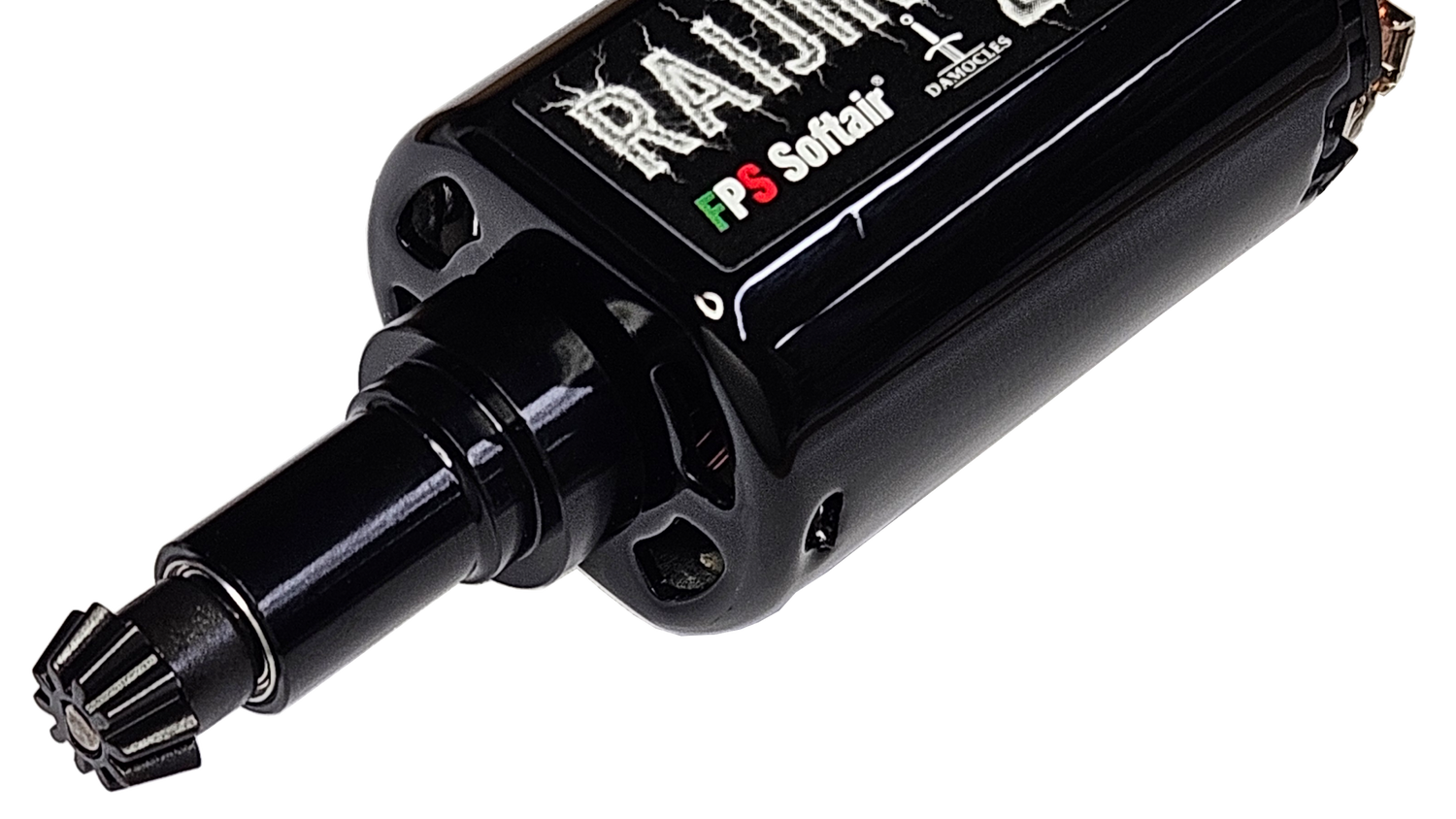

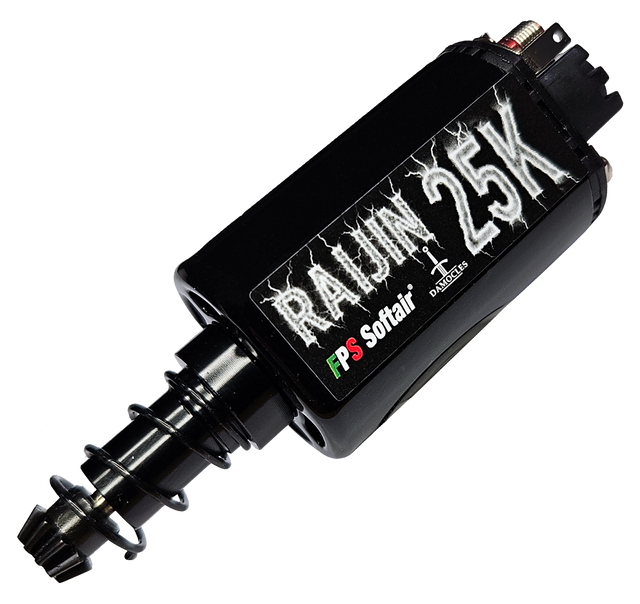

FPS Softair Raijin long shaft motor

FPS RAIJIN 25K custom DC motor, 25,000 rpm (calculated with 13:1 gear ratio, 11.1 battery and 1 joule of power).

This motor was designed in Italy by FPS in collaboration with Damocles and La Tartaruga Softair LTS.
It is built with state-of-the-art materials and is suitable for use with 18.1/16.1/13.1/12.1 gear ratios
and Dual Sector gears. It delivers 100% torque with power outputs of up to 1.5 joules.

TECHNICAL FEATURES:

– Rotation speed with 11.1 at zero load = 31,000 rpm
– Pure NEODYMIUM magnets
– Latest-generation wire for internal windings

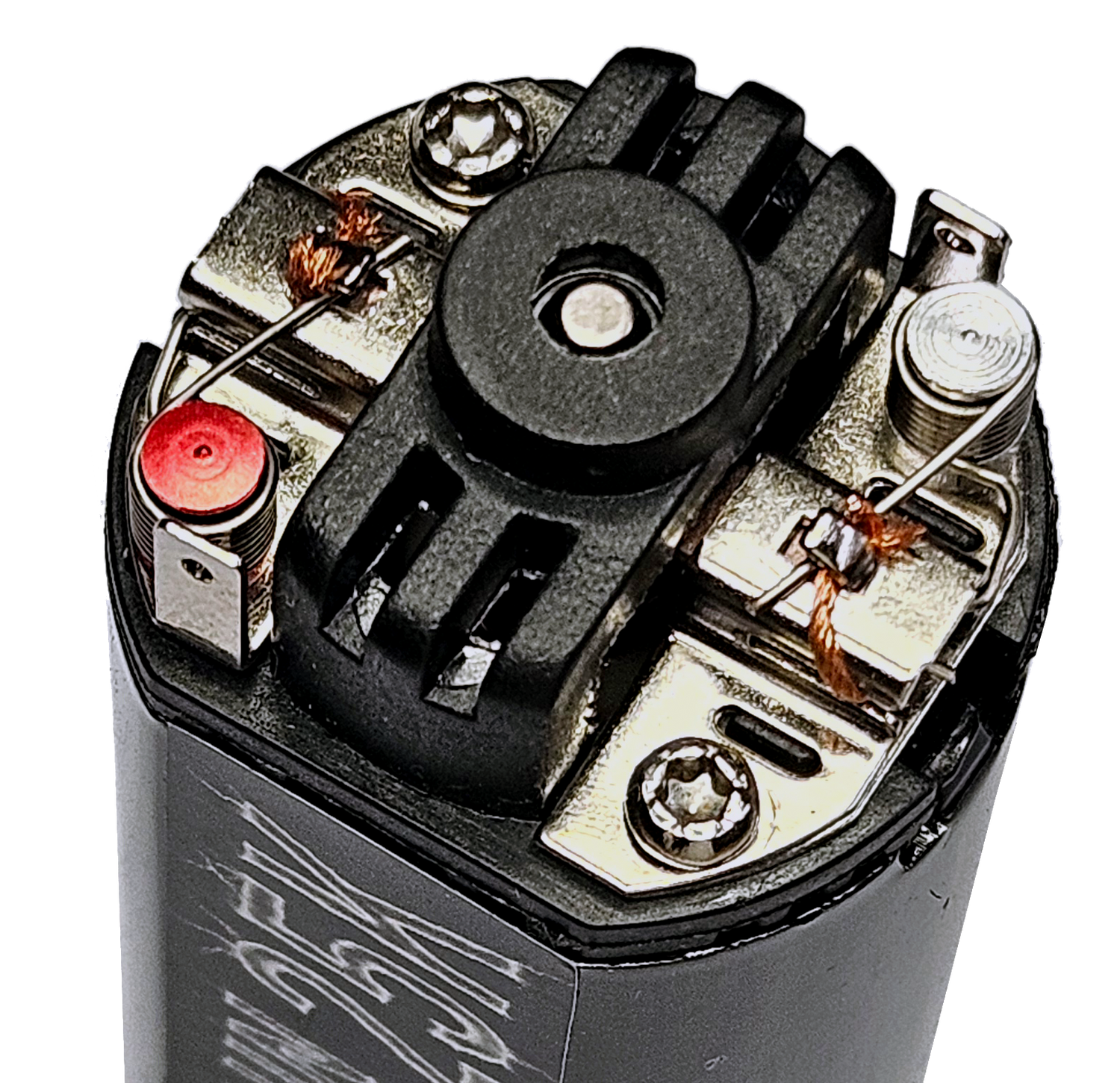

– Long-lasting, low-friction brushes with pure copper wire
– 2 large bearings on the aluminum shaft carrier and 4 total bearings for stable rotation
– The pinion, manufactured with MIM technology and thermoset, adapts to the most common gears on the market, significantly reducing noise
– LONG shaft model

Thanks to the latest technologies applied in its construction, the RAIJIN 25K has a torque of 4.20 kg/cm, maintaining 25,000 rpm with an 11.1 battery at full load.
This ensures excellent single-shot responsiveness and a consistent rate depending on the gear ratio installed on the replica.
