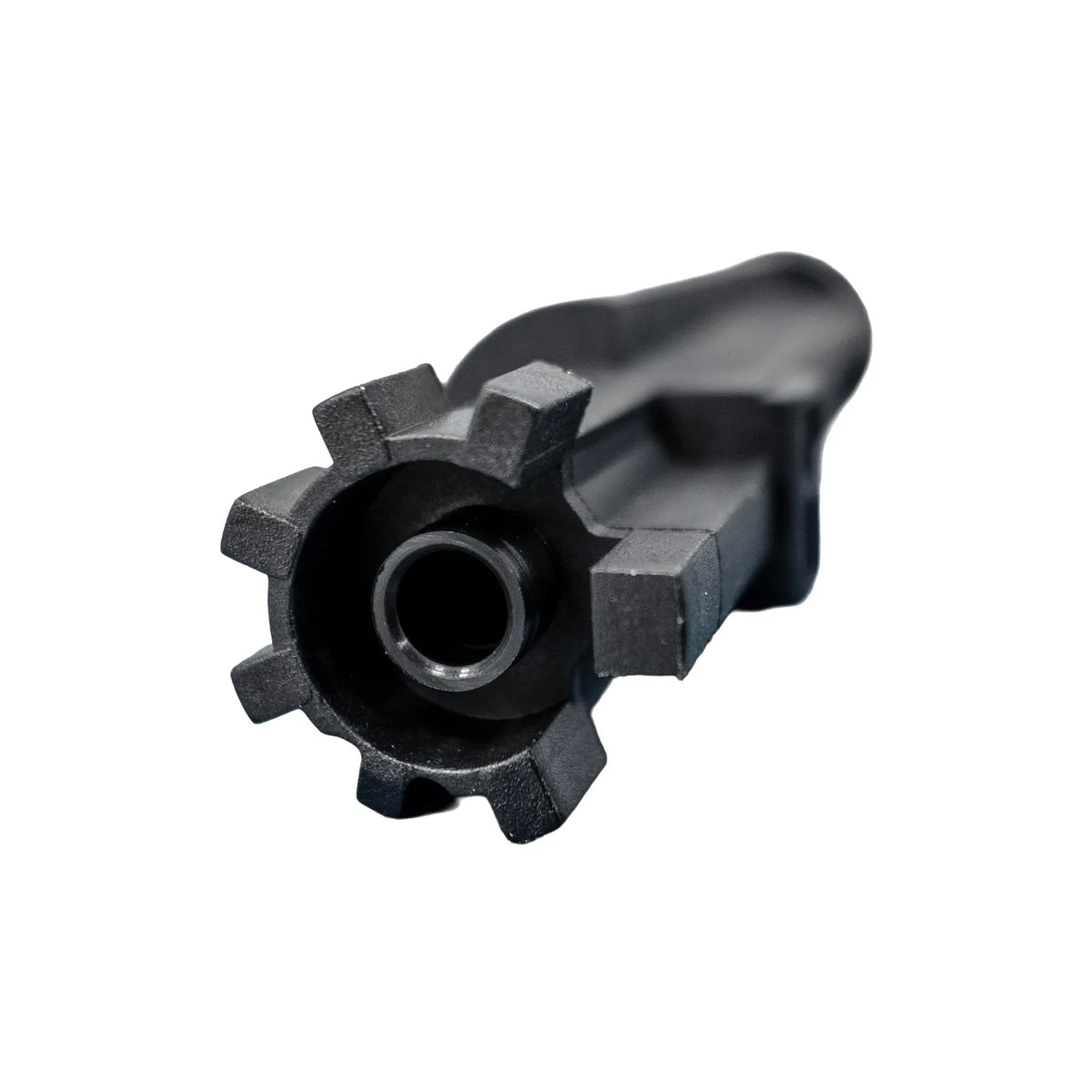

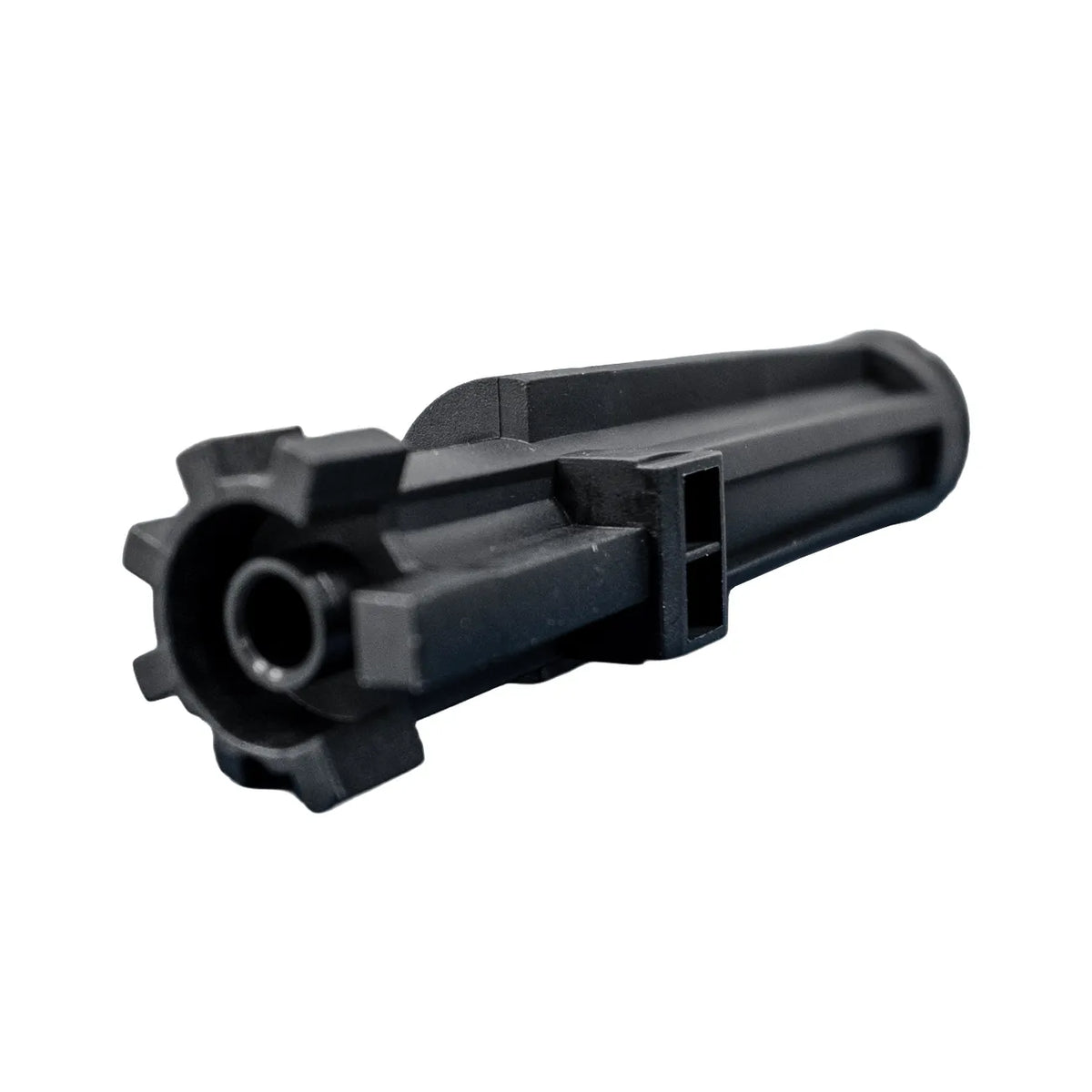

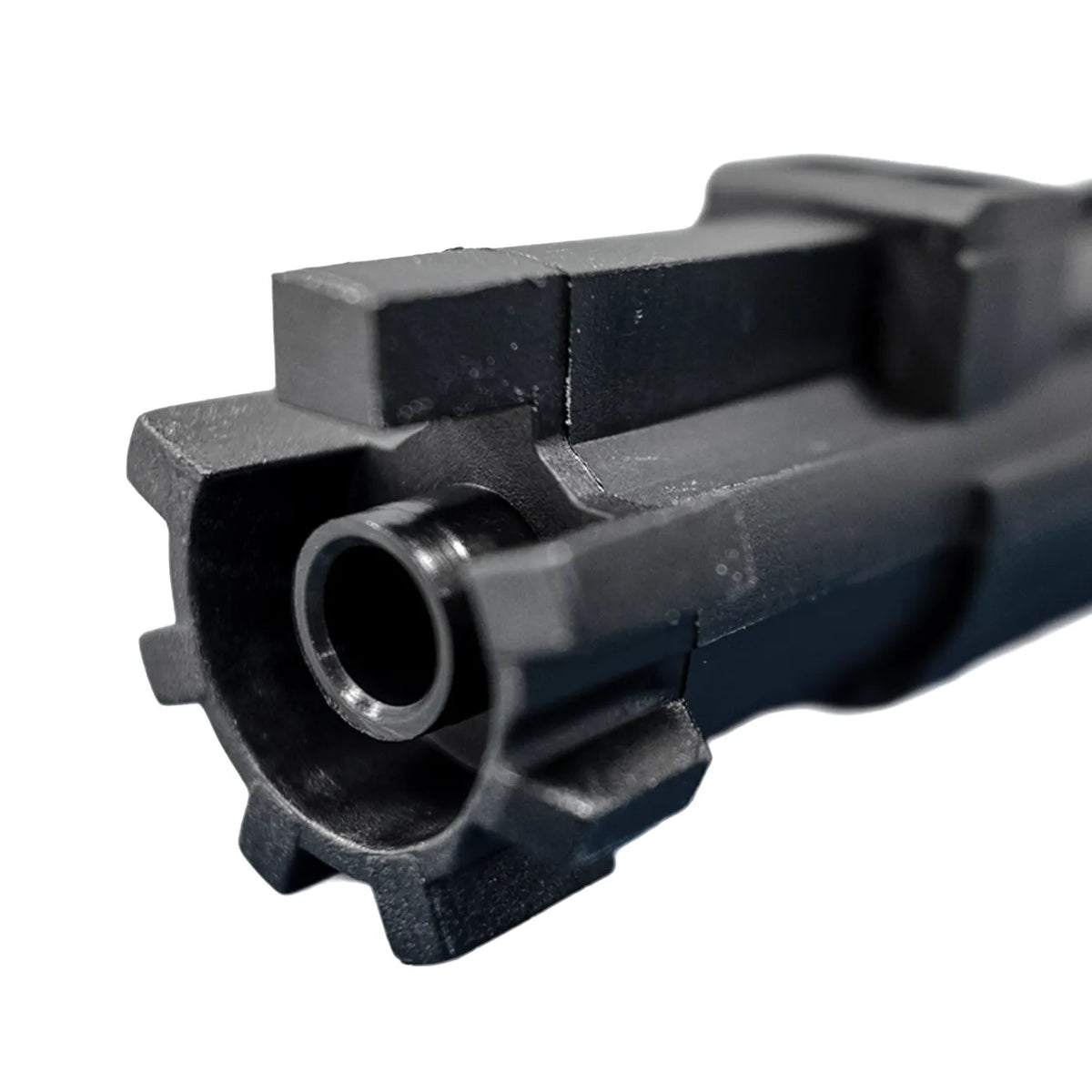

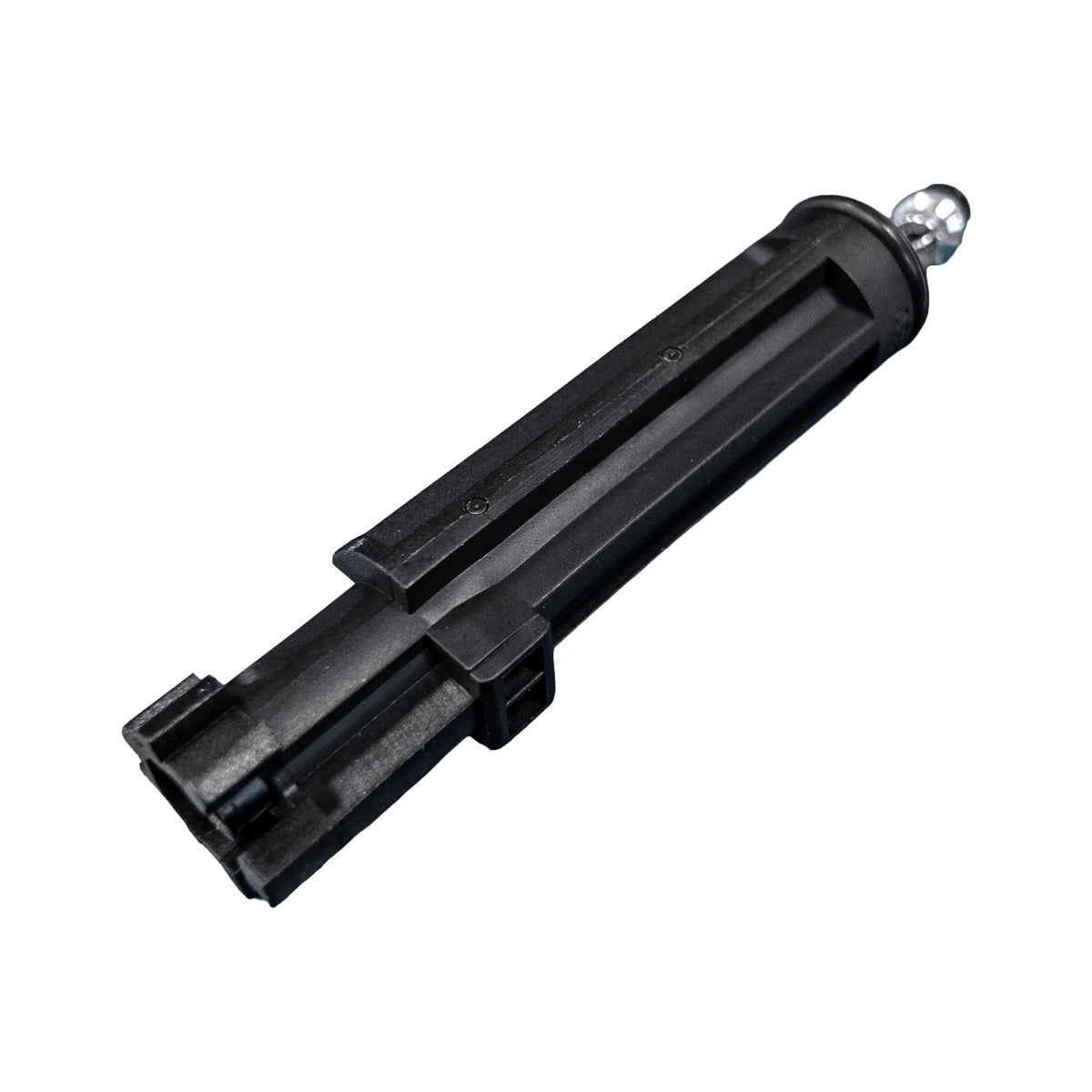

RHD VFC Nozzle with Flux Core (Bolt-Lock)
RHD VFC Nozzle with Flux Core (Bolt-Lock) is backordered and will ship as soon as it is back in stock.
A complete RHD Flux Core bolt-lock loading nozzle for the VFC LAR, APFG MCX and Maruyama ISO556 GBB rifles. Its push-pull return spring keeps the nozzle sealed against the bucking until the shot and seats each BB firmly, for more reliable feeding and stable cycling. Adjustable flow valve (NPAS) fitted.
Pickup available at Socom Tactical - Fleet
Usually ready in 2 hours
Interest Free Finance
Interest Free Finance
We accept Klarna and PayPal Pay-in-3.
Delivery and Shipping
Delivery and Shipping
Free shipping for all orders over £100.
Orders are shipped Monday, Wednesday, Thursday and Friday
Cut off time 14:00 all orders are send 1-2 days for UK Mainland
RHD VFC Nozzle with Flux Core (Bolt-Lock)
Description
Description
Improve the gas seal and feeding of your VFC LAR, APFG MCX or Maruyama ISO556 gas blowback rifle with the RHD Flux Core loading nozzle. It is a complete polymer nozzle assembly, with RHD's Flux Core return spring and an adjustable flow valve (NPAS, or Negative Pressure Adjustment System) already fitted, so it simply replaces your rifle's original nozzle.
A tighter gas seal
The Flux Core spring works in both directions, pushing and pulling. Once fitted, it holds the nozzle slightly forward, keeping it pressed against the bucking right up until the shot. That minimises gas leaking past the BB, so more of each shot's gas goes into firing it.
Reliable feeding, stable cycling
In the last part of the bolt carrier's forward travel, the spring helps the nozzle push the BB firmly into the chamber, for more reliable feeding and more stable cycling. RHD spent two years field-testing and gathering data on the Flux Core design before release.
The Flux Core nozzle is for GBBR owners who want more consistent performance from their rifle, as a drop-in replacement for the stock nozzle. Browse our gas blowback rifle parts and the rest of the RHD range.
Specifications
-
Compatibility:
- VFC LAR (FAL/SA58) GBB series
- APFG MCX and Spear LT GBB
- Maruyama ISO556 GBB
-
Not compatible with:
- APFG MPX GBB
- APFG XM7 GBB
- Spring fixing: Screw (bolt-lock)
- Type: Complete polymer loading nozzle with Flux Core return spring and adjustable flow valve (NPAS)
- Length: Approx. 97mm
- Materials: Polymer, steel and aluminium alloy
- In the box: 1 loading nozzle assembly
Frequently Asked Questions
Will the RHD Flux Core Bolt-Lock nozzle fit my GBBR?
Will the RHD Flux Core Bolt-Lock nozzle fit my GBBR?
It fits VFC-spec GBB rifles that hold the nozzle spring with a screw, including the VFC LAR (FAL/SA58), the APFG MCX and Spear LT, and the Maruyama ISO556. It does not fit the APFG MPX or XM7. For VFC M4 and HK416 GBB rifles, choose the Flux Core C-Lock nozzle instead. If you are unsure, contact us before ordering.
Is the RHD Flux Core nozzle easy to fit?
Is the RHD Flux Core nozzle easy to fit?
It replaces your original nozzle directly, but fitting needs some DIY confidence, as the bolt carrier has to be stripped. Apply a thin layer of airsoft silicone oil to the spring and nozzle O-ring, and a small amount of thread locker on the rear fixing screw. As the nozzle affects your FPS, chrono the rifle after fitting and set it comfortably within your site's limit. If you are new to GBBR work, we recommend having it fitted by a tech.
What is an airsoft NPAS?
What is an airsoft NPAS?
NPAS stands for Negative Pressure Adjustment System. It is an adjustable flow valve in the nozzle that controls how much gas reaches the BB, letting you fine-tune your rifle's FPS. This nozzle comes with one already fitted.
